CISCO IOS NAT Extendable Feature

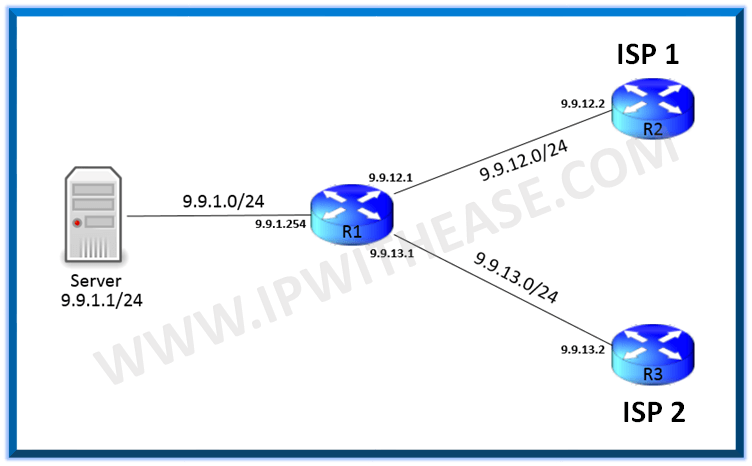

The NAT extendable feature on Cisco IOS is used to map one private IP address to more than one Public IP address.Let us understand the use case of NAT extendable feature with below topology –

In this topology the ISP 1 and ISP 2 routers will try to connect to server on its IP 9.9.1.1.The IP address subnet for ISP 1 would be 9.9.12.0/24 and for ISP 2 would be 9.9.13.0/24.

Advertisements

Let us assume the IP assigned by ISP 1 is 9.9.12.12 and IP assigned by ISP 2 is 9.9.13.13.

CONFIGURATION:

We will configure a one-one NAT on R1 as below to make the Server reachable from ISP 1 first.

R1(config)#ip nat inside source static 9.9.1.1 9.9.12.12

# A one-one NAT translation between 9.9.1.1 and 9.9.12.12.

R1(config)#interface GigabitEthernet 0/1

R1(config-if)#ip nat inside

R1(config)#interface GigabitEthernet 0/2

R1(config-if)#ip nat outside

R1(config)#interface GigabitEthernet 0/3

R1(config-if)#ip nat outside

Now if we want to configure the same thing for ISP 2 assigned public IP as below we get the error response from Cisco IOS:

R1(config)#ip nat inside source static 9.9.1.1 9.9.13.13

% 9.9.1.1 already mapped (9.9.1.1 -> 9.9.12.12)

To remedy this we can use the NAT extendable feature so the Server can be accessed from both the ISPs.

R1(config)#no ip nat inside source static 9.9.1.1 9.9.12.12

R1(config)#ip nat inside source static 9.9.1.1 9.9.12.12 extendable

R1(config)#ip nat inside source static 9.9.1.1 9.9.13.13 extendable



 VERIFICATION:

R1#show ip nat translations

Pro       Inside global                Inside local      Outside local   Outside global

—        9.9.12.12                     9.9.1.1                         —                    —

—        9.9.13.13                     9.9.1.1                         —                    —

We see 9.9.1.1 is mapped to both the public IP (Assumed in out lab) 9.9.12.12 and 9.9.13.13.
