EIGRP LEARNT DEFAULT ROUTE NOT BEING ADVERTISED INTO BGP

Redistribution across IGP and BGP is a common scenario especially when we have WAN and LAN communication happening. One example includes Service provider providing WAN link on BGP and customer using IGP like EIGRP in LAN environment. However, let’s understand what happens when EIGRP redistributes default route into BGP. In case advertisement doesn’t happen, how can the requirement condition for BGP to learn default route be met.

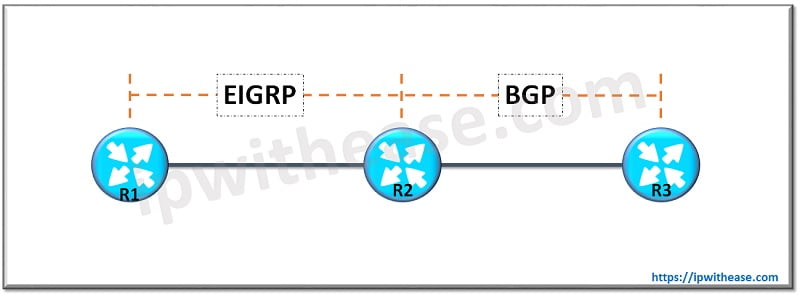

A lab scenario has been created below –

Below is the basic configuration of R1, R2 and R3 –

R1#

interface Loopback0
ip address 1.1.1.1 255.255.255.0
!
interface FastEthernet0/0
ip address 192.168.12.1 255.255.255.0
!
router eigrp 1
redistribute static metric 1000 100 255 1 1500    >>>>>> Configured to redistribute default route into EIGRP
network 1.1.1.0 0.0.0.255
network 192.168.12.0
no auto-summary
!
ip route 0.0.0.0 0.0.0.0 Null0    >>>>>> A Default Route is injected towards NULL0 for testing purpose
R2

interface Loopback0
ip address 2.2.2.2 255.255.255.0
!
interface FastEthernet0/0
ip address 192.168.12.2 255.255.255.0
!
interface FastEthernet0/1
ip address 192.168.23.2 255.255.255.0
!
router eigrp 1
network 192.168.12.0
no auto-summary
!
router bgp 1
no synchronization
bgp log-neighbor-changes
network 2.2.2.0 mask 255.255.255.0
network 192.168.23.0
neighbor 192.168.23.3 remote-as 2
neighbor 192.168.23.3 soft-reconfiguration inbound
R3

interface FastEthernet0/1
ip address 192.168.23.3 255.255.255.0
!
router bgp 2
no synchronization
bgp log-neighbor-changes
network 192.168.23.0
neighbor 192.168.23.2 remote-as 1
neighbor 192.168.23.2 soft-reconfiguration inbound
no auto-summary
Next we configure redistribution of EIGRP Routes into BGP on R2 –

R2(config)#router bgp 1
R2(config-router)#redistribute eigrp 1
Now lets view the output on R3

R3#show ip bgp

BGP table version is 10, local router ID is 192.168.23.3
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network               Next Hop            Metric     LocPrf Weight Path
*> 1.1.1.0/24       192.168.23.2       409600                0            1 ?
*> 2.2.2.0/24      192.168.23.2       0                            0            1 i
*> 192.168.12.0  192.168.23.2       0                            0            1 ?
*    192.168.23.0  192.168.23.2      0                            0            1 i
As seen from above configuration , R3 is not receving the default Route redistributed from EIGRP into BGP .

Next , we will include “Default-originate” keyword on R2 and view the output on R3 –

R2(config)#router bgp 1
R2(config-router)#neighb 192.168.23.3 default-originate
R3#sh ip bgp
BGP table version is 11, local router ID is 192.168.23.3
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network               Next Hop            Metric     LocPrf Weight Path
*> 0.0.0.0            192.168.23.2      0                                0          1 i
*> 1.1.1.0/24       192.168.23.2       409600                 0           1 ?
*> 2.2.2.0/24       192.168.23.2        0                            0           1 i
*> 192.168.12.0  192.168.23.2        0                            0           1 ?
*    192.168.23.0  192.168.23.2       0                             0          1 i
*>  0.0.0.0            0                                                          32768   i
As seen from the output , once “Default-Originate” keyword is issued on R2 for neighbour R3 , the Default Route is being advertised into BGP which was not the case initially.
