USING ACL TO MITIGATE IP ADDRESS SPOOFING

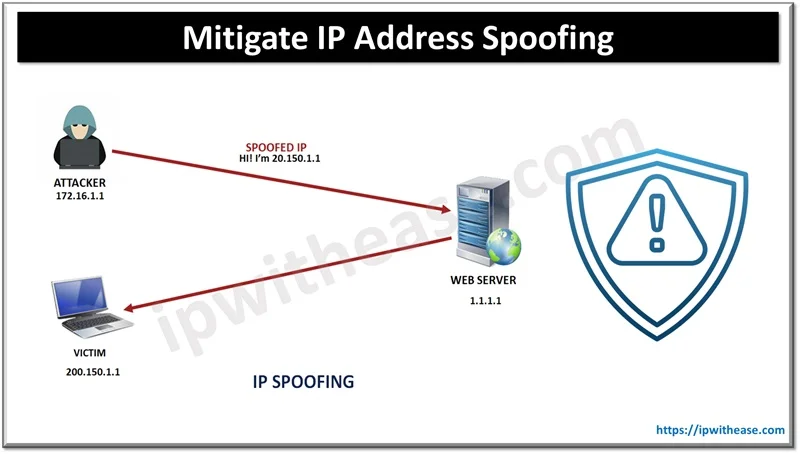

Spoofing is a practice used to gain unauthorised access to machines/server applications, whereby an attacker unlawfully imitates another machine by manipulating IP packets. Although IP spoofing is not an attack, it is the starting point of many attacks prevalent in today’s networks.

Spoofing attack initiates from outside unsecured Internet and someone on outside of the LAN network spoofs the company inside IP address to make it look like they are part of the inside of your network.


The key here is to deny RFC 1918 IP block that is coming into your network from the outside interface. In addition to RFC 1918 block of addresses, we also need to block any source coming from local loopback, Network, Broadcast address and multicast range –

RFC 1918 private address block is –

using-acl-to-mitigate-ip-address-spoofing

Other sources to block include –

using-acl-to-mitigate-ip-address-spoofing

Step by step configuration to mitigate IP Spoofing attack is as below –

Step 1 –

Call RFC 1918 block in access list (here ACL is 101)

R1(config)# access-list 101 deny ip 10.0.0.0 0.255.255.255 any logR1(config)# access-list 101 deny ip 172.16.0.0 0.15.255.255 any log

R1(config)# access-list 101 deny ip 192.168.0.0 0.0.255.255 any log

Step 2 –

Call other sources in access list (here ACL is 101)

R1(config)# access-list 101 deny ip 127.0.0.0 0.255.255.255 any logR1(config)# access-list 101 deny ip 0.0.0.0 0.255.255.255 any log

R1(config)# access-list 101 deny ip 224.0.0.0 15.255.255.255 any log

R1(config)# access-list 101 deny ip host 255.255.255.255 any log

R1(config)# access-list 101 permit ip any 192.168.5.0 0.0.0.255

Traffic is permitted to the destination address 192.168.5.0 /24 which is LAN IP Address

Step 3 –

Apply ACL to outside Interface (Gi0/0 is outside/Internet Interface)

R1(config)# interface Gi0/0R1(config-if)# ip access-group 101 in

Not only do we want to prevent people from the outside of our network ‘pretending’ they are inside our network, we also want to prevent our inside people from spoofing to a different IP address as well. The above configuration had a focus on traffic INBOUND to our network,

Below configuration will prevent OUTBOUND traffic from spoofing.

Step 4 –

The only range that is allowed to transmit is my internal network, in this case 192.168.5.0 /24

R1(config)# access-list 110 permit ip 192.168.5.0 0.0.0.255 anyR1(config)# access-list 110 deny ip any any log

Step 5 –

Apply ACL to outside Interface (Gi0/0 is inside/secured Interface)

R1(config)# interface Gi0/1R1(config-if)# ip access-group 110 in
