When configuring Network Address Translation (NAT) on Juniper SRX firewalls, you’ll come across terms like MIP, VIP, and DIP. These are essential NAT concepts, especially in legacy Juniper devices (like ScreenOS) and are crucial in managing IP address translation in a secure and scalable way.

Let’s discuss in detail the three terms and how they differ from each other.

Difference Between MIP, VIP and DIP in Juniper

Juniper ScreenOS platform supports Source NAT as well as Destination NAT and hence utilizes following terminologies: MIP, VIP and DIP.

Google ADs

What is MIP

MIP stands for Mapped IP. MIP maps one external IP address to one internal IP address and does not alter the port information. It is used when an internal host needs to be accessible from the outside using a fixed public IP.

How it Works

A single internal IP (e.g., 192.168.1.10) is mapped to a single public IP (e.g., 203.0.113.10). All traffic to/from the internal host uses the public IP.

Public IP: 203.0.113.10
Internal IP: 192.168.1.10

Traffic from the internet to 203.0.113.10 is NAT-ed to 192.168.1.10.

What is VIP

VIP stands for Virtual IP. A VIP maps one external IP address and one external port to a multiple number of possible IP addresses and ports. It can also translate external port to same or different internal port. It is useful when multiple internal servers offer different services, and you only have one public IP.

How it Works

One public IP (e.g., 203.0.113.10) is mapped to different internal servers based on port numbers.

203.0.113.10:80  →  192.168.1.10:80 (Web Server)
203.0.113.10:22  →  192.168.1.20:22 (SSH Server)

What is DIP

DIP stands for Dynamic IP. DIP can enable policy-based NAT, and NAT, before VPN encapsulation; in which overlapping private IP addresses exist in a VPN network.

How it Works

Internal IPs are translated to a pool of public IPs dynamically, often using different port numbers.

Internal IP: 192.168.1.50 → Public IP: 203.0.113.10:30456

Notable is that VIP and DIP is unidirectional whereas MIP is bidirectional.

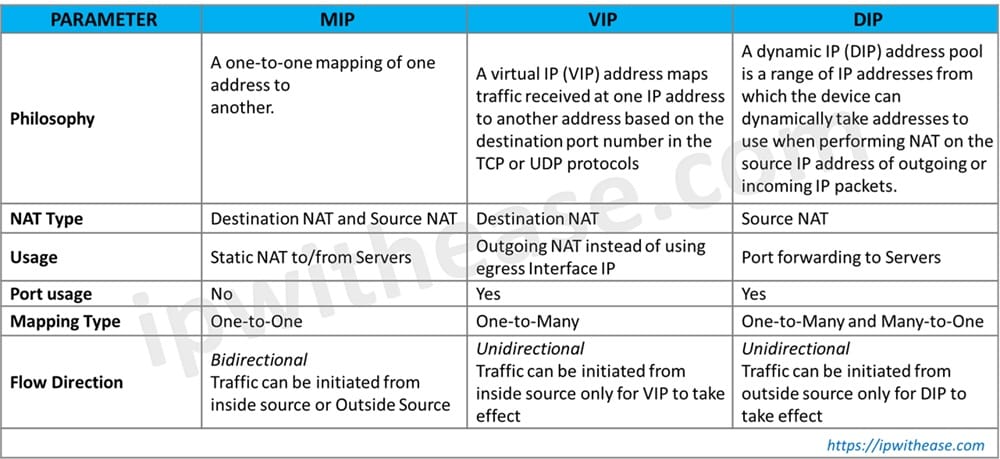

Comparison: MIP, VIP and DIP

Below comparison table will differentiate between MIP, VIP and DIP terms used in ScreenOS:

PARAMETERMIPVIPDIP
PhilosophyA one-to-one mapping of one address to another.                                                                                                                                                                                                                  A virtual IP (VIP) address maps traffic received at one IP address to another address based on the destination port number in the TCP or UDP protocolsA dynamic IP (DIP) address pool is a range of IP addresses from which the device can dynamically take addresses to use when performing NAT on the source IP address of outgoing or incoming IP packets.
NAT TypeDestination NAT and Source NATDestination NATSource NAT
UsageStatic NAT to/from ServersOutgoing NAT instead of using egress Interface IPPort forwarding to Servers
Port usageNoYesYes
Mapping TypeOne-to-OneOne-to-ManyOne-to-Many and Many-to-One
Flow DirectionBidirectional
Traffic can be initiated from inside source or Outside Source
Unidirectional
Traffic can be initiated from inside source only for VIP to take effect
Unidirectional
Traffic can be initiated from outside source only for DIP to take effect

Download the comparison table: mip vip and dip

Final Words

Understanding the difference between MIP, VIP, and DIP is crucial for designing secure and efficient network architectures in Juniper environments. Whether you’re exposing internal services to the internet or managing outbound traffic, choosing the right NAT method can make all the difference.
