In this article, we will discuss Static NAT configuration on Cisco ASA firewall and Cisco ASA Static NAT example.

Cisco ASA Static NAT

cisco asa static nat example

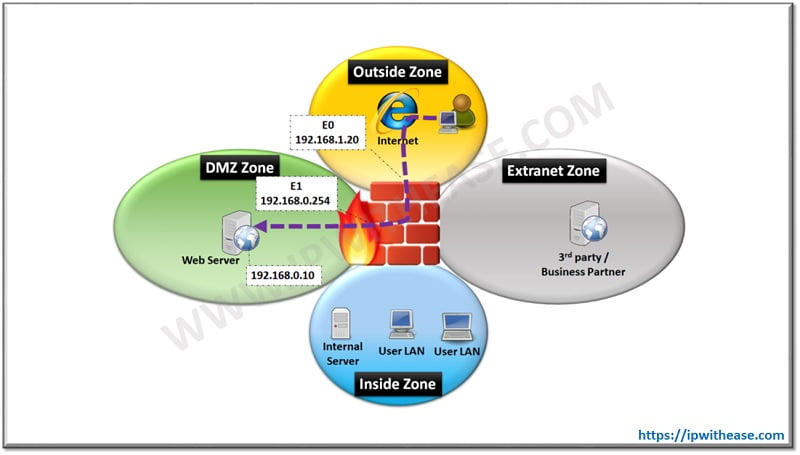

Static NAT is primarily required when a Data Center or Hub site has WEB Facing Server in DMZ Zone (or Inside Zone if no DMZ) and Users over the Internet need to access the Application of Web Facing server. The applications may be Web (HTTP) Server, Email Server or even FTP server. Below is a sample scenario where an Application server is Hosted in DMZ Zone and needs to be accessed from outside (Internet) Zone. For testing, R1 Router is the users sitting over the Internet while R2 is the Web Server in DMZ Zone –

Related- Cisco ASA Object Group


asa static nat

Cisco ASA Static NAT Example

Below is the configuration for ASA version 8.3 or older.

1st step is to create Network Object named “WEB-SERVER” and then the translated IP address. Static NAT statement will define which outside address to use.

ASA(config)# object network WEB-SERVERASA(config-network-object)# host

ASA(config-network-object)# nat (DMZ,OUTSIDE) static

2nd step includes creating the access list (extended) which allows any source IP address to connect to real IP address

ASA(config)# access-list OUT-TO-DMZ extended permit tcp any host
3rd step includes creation of access-group to apply access list on outside interface.
ASA(config)# access-group OUT-TO-DMZ in interface OUTSIDE

Now that configuration is in place , next we will configure Router R2 (configured as DMZ Server for testing) with Line VTY password “cisco” –

R2(config)#line vty 0 4

R2(config-line)#password cisco


For verification, telnet from R1 (host over Internet) to R2 ( as below –

R1# … Open

User Access Verification



The nat translation over ASA can be viewed by “show xlate” command as below –

ASA(config)# sh xlate detail1 in use, 1 most used

Flags: D – DNS, d – dump, I – identity, i – dynamic, n – no random,r – portmap, s – static

NAT from DMZ: to outside: flags s

Related- Static vs Dynamic NAT- NAT Types

Related- ASA Firewall Security Guide
